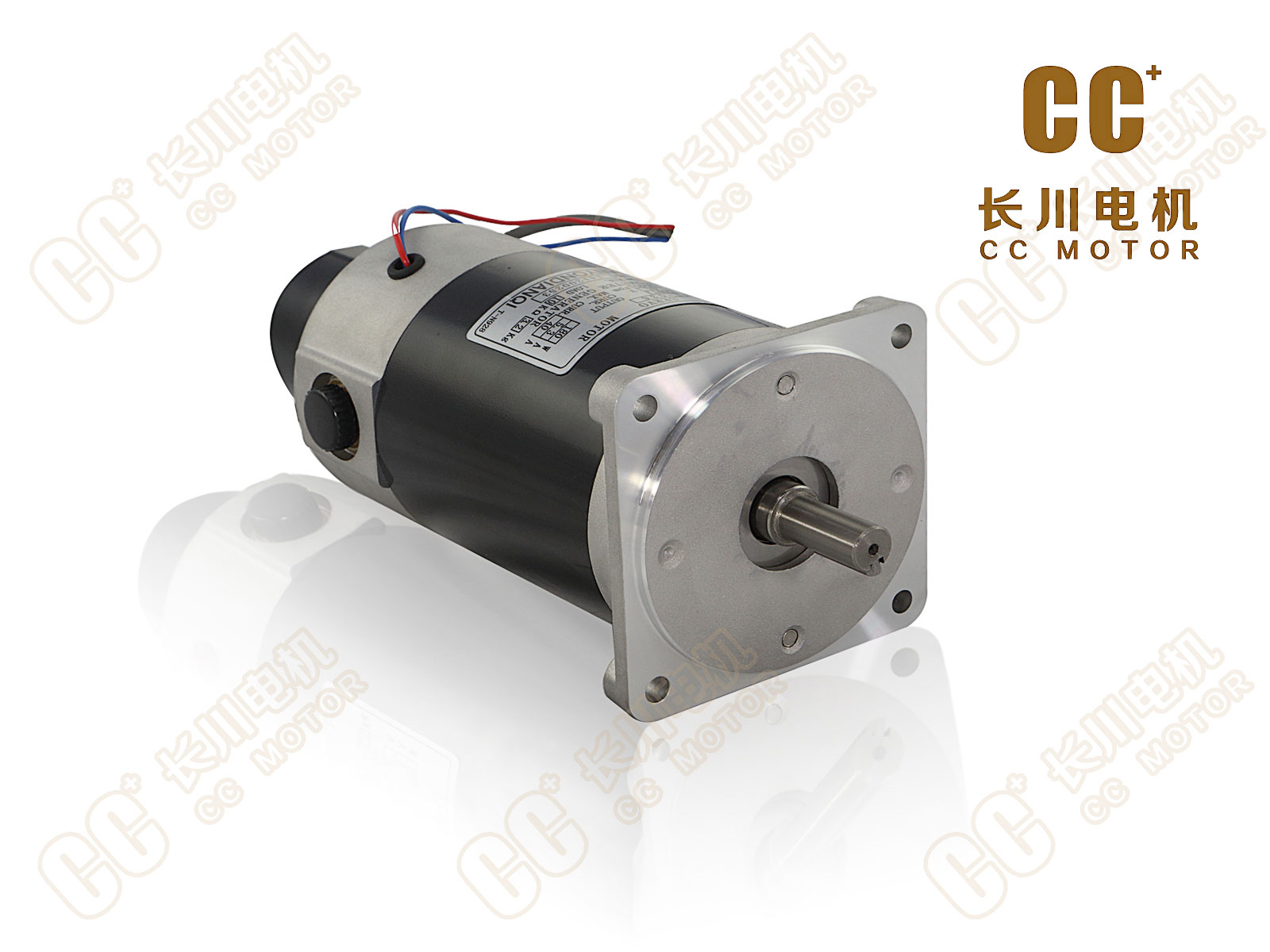

产品名称: 82SYT-180
上市日期:2015-12-25
  • 82SYT-180 82SYT-180
  • Spec
  • Scope
  • Dimensions
  • Product Description

Rated power

Rated voltage

Rated current



Rated torque



Rated speed



Time constant



Tachometer generator factor



Linearity



W

V

A

N.m

rpm/min

ms

v/krpm


180

48

3

0.6

3000

15.2

7.0

1%



SYX and SYT series DC servo motor is mainly used for precision driving situations such as precision CNC EDM machine, wire cutting machine, three coordinate measuring instrument, and robot.


Function characteristics:

1. Small size, fast response, big overload capacity, wide speed range.
2. Low noise, high efficiency, long operation life, high cost performance.
3. Big torque at low speed, small fluctuation, stable operation, good controllability.
4. Velocity measurement motor of output voltage ripple below 1% or less.
