Products Product Details

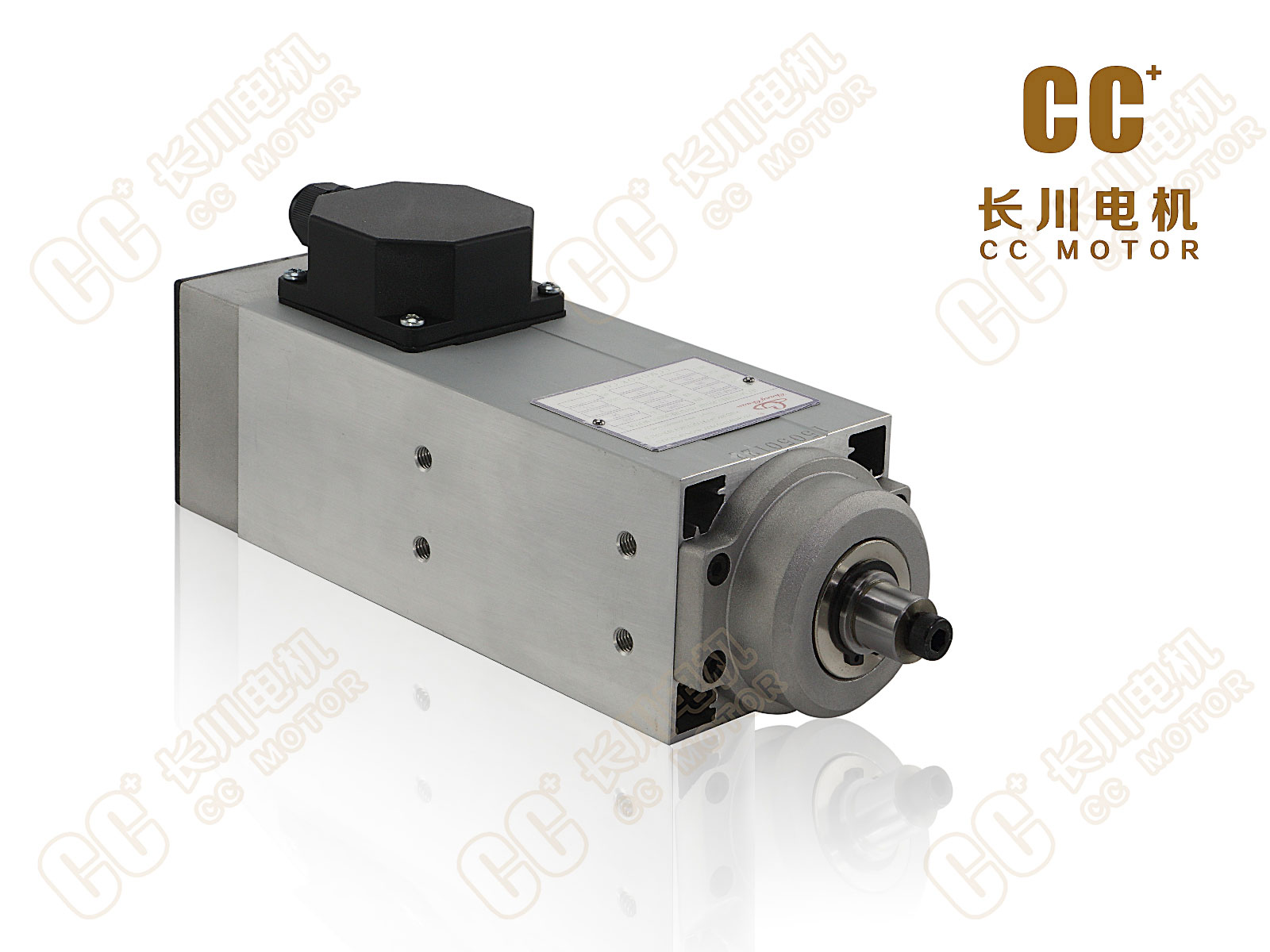

产品名称: MF60-2212F
上市日期:2015-12-23
  • MF60-2212F MF60-2212F
  • Spec
  • Scope
  • Dimensions
  • Product Description

 rated power



  rated voltage



  rated current



  rated speed



rated freqrated freq



heat-resistant class



protection class



duty type

KW

V

A

rpm/min

Hz







2.2

380/220

5.6/9.7

12000

200

F

IP54

S1

MF series high frequency spindle motor is a specially designed three-phase high speed induction motor, which can replace similar foreign products. MF series Pre-milling motor for sealing machine is widely used in Pre-milling device of automatic edge banding machine in woodworking industry. And modified the ripple marks caused by sawing plate cutting processing in order to achieve a better trimming effect.

1. Using with the frequency converter enables electro-spindle rotate in high speed, which can make electro-spindle operate in high-speed and high-precision with its simplified mechanism and small sized dimension.

2. This motor for high-speed electro-spindle has low noise, no vibration, big torque, long operating life and smooth in its high speed rotating.
